Air temperature alone does not capture heat stress well. Humidity limits the body’s cooling through sweating, so two days at the same temperature can differ in physiological risk.

Here we calculate six heat stress indices from ERA5 data and compare them:

  • Air temperature (T): standard 2m temperature
  • Wet bulb temperature (Tw): temperature accounting for humidity via evaporative cooling
  • Heat index (HI): apparent temperature, how hot it “feels”
  • WBGT: wet bulb globe temperature, the occupational heat stress standard
  • UTCI: universal thermal climate index
  • Humidex: Canadian heat discomfort index

Why multiple indices?

Each index weights temperature, humidity, wind, and radiation differently:

Index Purpose Key Factors Primary Use
Temperature Actual air temperature Dry bulb only Baseline measurement
Wet Bulb Evaporative cooling potential T + Humidity Physiological limit
Heat Index Perceived temperature T + RH (empirical) Public weather alerts
WBGT Occupational heat limits Tw + T + Radiation Workplace safety
UTCI Comprehensive thermal comfort T + Tmrt + Wind + Humidity Climate research
Humidex Comfort assessment T + Dewpoint Canadian weather

Understanding the indices

Nomenclature used throughout:

Symbol Description Unit
T, Ta Air temperature (dry bulb) °C
Td Dewpoint temperature °C
Tw, Tnwb Wet bulb temperature (natural) °C
Tg Globe temperature °C
Tmrt Mean radiant temperature °C
RH Relative humidity %
e Vapor pressure hPa
HI Heat Index °C
WBGT Wet Bulb Globe Temperature °C
UTCI Universal Thermal Climate Index °C

Wet bulb temperature (Tw)

The wet bulb temperature represents the lowest temperature that can be achieved through evaporative cooling alone. It’s calculated using the Stull (2011) formula:

Tw=T⋅arctan⁡[0.151977(RH+8.313659)0.5]+arctan⁡(T+RH)−arctan⁡(RH−1.676331)+0.00391838⋅RH1.5⋅arctan⁡(0.023101⋅RH)−4.686035T_w = T \cdot \arctan[0.151977(RH + 8.313659)^{0.5}] + \arctan(T + RH) - \arctan(RH - 1.676331) + 0.00391838 \cdot RH^{1.5} \cdot \arctan(0.023101 \cdot RH) - 4.686035

A wet bulb temperature of 35°C is considered the upper limit for human survivability, as the body cannot cool itself through sweating at this point (the air is so hot and humid that sweating no longer cools the body!).

Heat Index (HI)

The Heat Index uses the Rothfusz regression equation from the US National Weather Service:

HI=−42.379+2.049T+10.143RH−0.225T⋅RH−0.007T2−0.055RH2+...HI = -42.379 + 2.049T + 10.143RH - 0.225T \cdot RH - 0.007T^2 - 0.055RH^2 + ...

Risk categories: - Normal (<27°C): No special precautions - Caution (27-32°C): Fatigue possible with prolonged exposure - Extreme Caution (32-41°C): Heat cramps and exhaustion possible - Danger (41-54°C): Heat exhaustion likely, heat stroke possible - Extreme Danger (>54°C): Heat stroke highly likely

WBGT (Wet Bulb Globe Temperature)

WBGT is the ISO 7243 standard for occupational heat stress:

WBGToutdoor=0.7⋅Tnwb+0.2⋅Tg+0.1⋅TaWBGT_{outdoor} = 0.7 \cdot T_{nwb} + 0.2 \cdot T_g + 0.1 \cdot T_a Where TnwbT_{nwb} is natural wet bulb, TgT_g is globe temperature (accounting for radiation), and TaT_a is air temperature.

Risk categories based on ISO 7243: - Low (<25°C): Safe for most activities - Moderate (25-28°C): Exercise caution - High (28-30°C): Reduce physical activity - Very High (30-32°C): Minimize outdoor work - Extreme (>32°C): Suspend heavy outdoor work

UTCI (Universal Thermal Climate Index)

UTCI is based on a multi-node model of human thermoregulation (Bröde et al., 2012). We use the sparse regression approximation from Roman et al. (2025):

The UTCI considers: - Air temperature - Mean radiant temperature - Wind speed at 10m - Relative humidity

Thermal stress categories: - Extreme cold stress (<-40°C) - Very strong cold stress (-40 to -27°C) - Strong cold stress (-27 to -13°C) - Moderate cold stress (-13 to 0°C) - Slight cold stress (0 to 9°C) - No thermal stress (9 to 26°C) - Moderate heat Stress (26 to 32°C) - Strong heat stress (32 to 38°C) - Very strong heat stress (38 to 46°C) - Extreme heat stress (>46°C)

Humidex

The Canadian Humidex is calculated as:

H=T+0.5555⋅(e−10)H = T + 0.5555 \cdot (e - 10)

Where e=6.11⋅exp⁡(5417.7530⋅(1/273.16−1/(273.15+Td)))e = 6.11 \cdot \exp(5417.7530 \cdot (1/273.16 - 1/(273.15 + T_d))) is the vapor pressure.

Calculating heat indices using ERA5 data

The helper function GetERA5DailyHeatIndexData() downloads temperature, dewpoint, and wind data and calculates all heat stress indices in one call.

states_url <- "https://bharatviz.saketlab.org/India_LGD_states.geojson"
states_file <- "indian_states.geojson"

if (!file.exists(states_file)) {
  try(download.file(states_url, states_file, mode = "wb"), silent = TRUE)
}

states_sf <- tryCatch(
  sf::st_read(states_file, quiet = TRUE),
  error = function(e) NULL
)

if (is.null(states_sf)) {
  knitr::opts_chunk$set(eval = FALSE)
}
heat_shade <- GetERA5DailyHeatIndexData(
  request_id = "india_heat_may2023_shade",
  start_date = "2023-05-01",
  end_date = "2023-05-31",
  json_file = states_file,
  solar_load = FALSE
)

heat_solar <- GetERA5DailyHeatIndexData(
  request_id = "india_heat_may2023_solar",
  start_date = "2023-05-01",
  end_date = "2023-05-31",
  json_file = states_file,
  solar_load = TRUE
)

head(heat_solar)

Solar load impact

When solar_load = TRUE, the function also downloads solar radiation data and uses it to calculate outdoor WBGT and UTCI values that account for direct sunlight.

daily_mean <- function(df, condition) {
  df %>%
    group_by(date) %>%
    summarise(WBGT = mean(wbgt), .groups = "drop") %>%
    mutate(Condition = condition)
}

solar_compare <- bind_rows(daily_mean(heat_shade, "Shade"), daily_mean(heat_solar, "Sun"))

ggplot(solar_compare, aes(date, WBGT, color = Condition)) +
  geom_line(linewidth = 1) +
  scale_color_manual(values = c(Shade = "#3498DB", Sun = "#E74C3C")) +
  labs(title = "Impact of solar radiation on WBGT", x = NULL, y = "WBGT (°C)")

Solar radiation adds several degrees to WBGT, which is the gap between the sun and shade lines.

Temporal analysis

For the remaining analyses, we use the solar-loaded data as it better represents outdoor conditions.

heat_data <- heat_solar

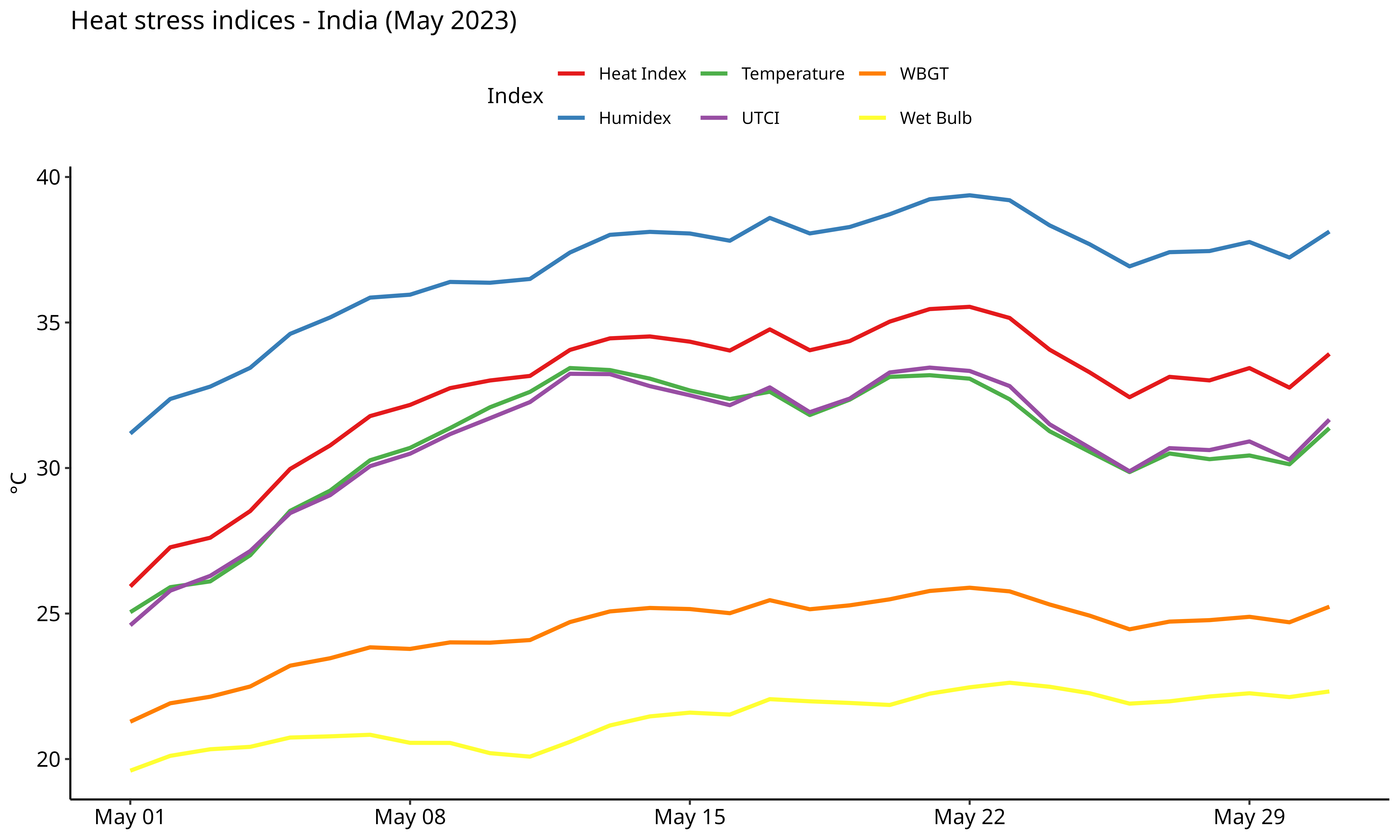

Daily mean of each index over the month:

index_cols <- c(
  temp_c = "Temperature", wet_bulb = "Wet Bulb", heat_index = "Heat Index",
  wbgt = "WBGT", utci = "UTCI", humidex = "Humidex"
)

daily_indices <- heat_data %>%
  group_by(date) %>%
  summarise(across(names(index_cols), mean, na.rm = TRUE), .groups = "drop") %>%
  pivot_longer(-date, names_to = "Index", values_to = "value") %>%
  mutate(Index = index_cols[Index])

ggplot(daily_indices, aes(date, value, color = Index)) +
  geom_line(linewidth = 1) +
  scale_color_brewer(palette = "Set1") +
  labs(title = "Heat stress indices - India (May 2023)", x = NULL, y = "°C")

Index differences from air temperature

daily_diff <- heat_data %>%
  mutate(across(c(wet_bulb, heat_index, wbgt, utci, humidex), ~ .x - temp_c)) %>%
  group_by(date) %>%
  summarise(across(c(wet_bulb, heat_index, wbgt, utci, humidex), mean, na.rm = TRUE), .groups = "drop") %>%
  pivot_longer(-date, names_to = "Index", values_to = "diff")

ggplot(daily_diff, aes(date, diff, fill = Index)) +
  geom_col(position = "dodge", alpha = 0.8) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  scale_fill_brewer(palette = "Set2") +
  labs(title = "Deviation from air temperature", x = NULL, y = "Difference (°C)")

A few things stand out:

  • Wet bulb stays below air temperature because of evaporative cooling.
  • Heat index and humidex rise above it when humidity is high.
  • WBGT and UTCI run high here because of the solar load.

Spatial analysis

The same indices, mapped across India by district.

districts_url <- "http://bharatviz.saketlab.org/India_LGD_districts.geojson"
districts_file <- "indian_districts.geojson"

if (!file.exists(districts_file)) {
  download.file(districts_url, districts_file, mode = "wb")
}

districts_sf <- sf::st_read(districts_file, quiet = TRUE)
heat_vars <- c("temp_c", "wet_bulb", "heat_index", "wbgt", "utci", "humidex", "rh")

monthly_heat <- heat_data %>%
  group_by(longitude, latitude) %>%
  summarise(across(all_of(heat_vars), mean, na.rm = TRUE), .groups = "drop") %>%
  st_as_sf(coords = c("longitude", "latitude"), crs = 4326)

district_map <- districts_sf %>%
  st_join(monthly_heat) %>%
  group_by(district_name, state_name) %>%
  summarise(across(all_of(heat_vars), mean, na.rm = TRUE), .groups = "drop")
heat_map <- function(var, title) {
  ggplot(district_map) +
    geom_sf(aes(fill = .data[[var]]), color = "white", linewidth = 0.05) +
    scale_fill_distiller(palette = "Spectral", name = "°C", na.value = "grey90") +
    labs(title = title) +
    theme_void()
}

(heat_map("temp_c", "Temperature") | heat_map("wet_bulb", "Wet bulb") | heat_map("heat_index", "Heat index")) /
  (heat_map("wbgt", "WBGT") | heat_map("utci", "UTCI") | heat_map("humidex", "Humidex")) +
  plot_annotation(title = "Heat stress indices across India (May 2023)")

Relative humidity choropleth

ggplot() +
  geom_sf(data = district_map, aes(fill = rh), color = NA) +
  geom_sf(data = states_sf, fill = NA, color = "grey40", linewidth = 0.3) +
  scale_fill_distiller(palette = "Blues", direction = 1, name = "RH (%)", na.value = "grey90") +
  labs(title = "Mean relative humidity - India (May 2023)") +
  theme_void()

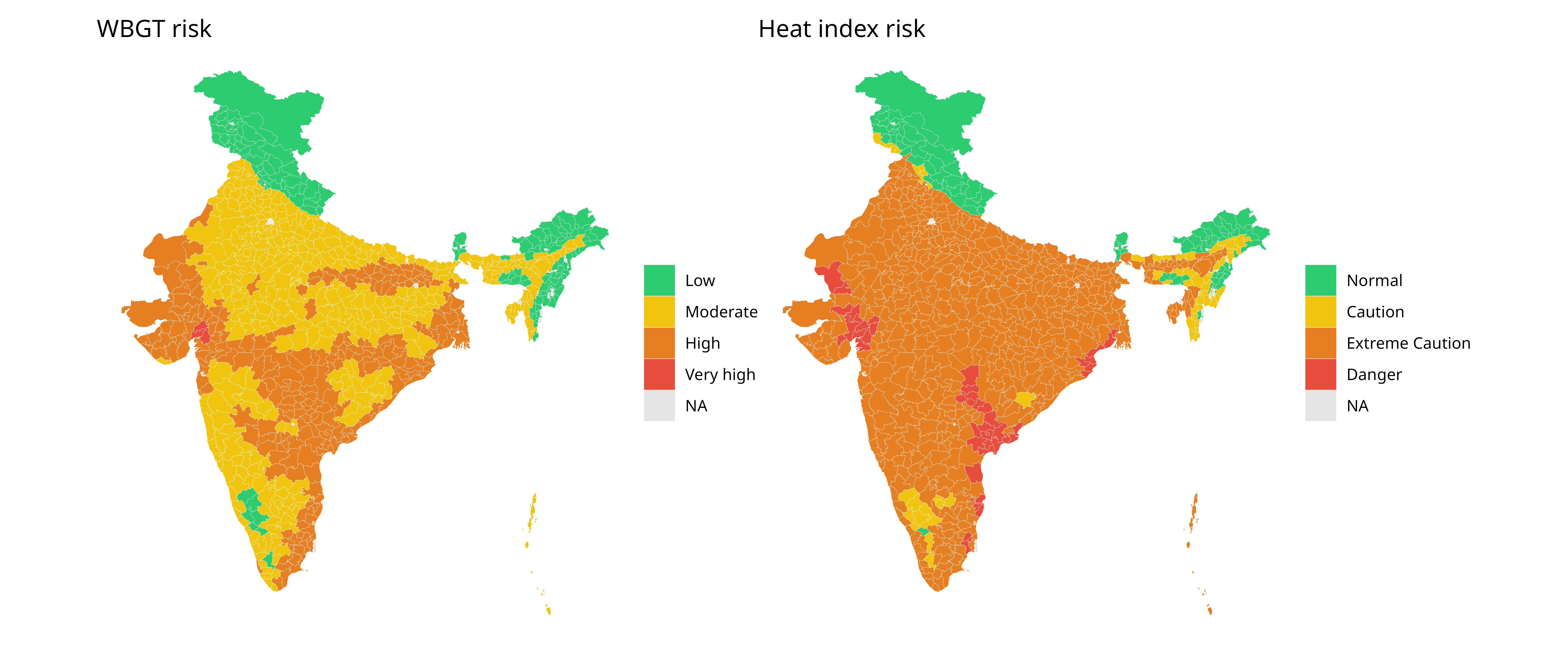

Risk assessment

wbgt_levels <- c("Low", "Moderate", "High", "Very high", "Extreme")
hi_levels <- c("Normal", "Caution", "Extreme Caution", "Danger", "Extreme Danger")

district_map <- district_map %>%
  mutate(
    wbgt_risk = factor(wbgt_risk_category(wbgt), levels = wbgt_levels),
    hi_risk = factor(heat_index_risk_category(heat_index), levels = hi_levels),
    utci_stress = utci_category(utci)
  )

risk_colors <- c(
  Low = "#2ECC71", Moderate = "#F1C40F", High = "#E67E22",
  `Very high` = "#E74C3C", Extreme = "#8E44AD"
)
hi_colors <- c(
  Normal = "#2ECC71", Caution = "#F1C40F", `Extreme Caution` = "#E67E22",
  Danger = "#E74C3C", `Extreme Danger` = "#8E44AD"
)

risk_map <- function(var, colors, title) {
  ggplot(district_map) +
    geom_sf(aes(fill = .data[[var]]), color = "white", linewidth = 0.05) +
    scale_fill_manual(values = colors, na.value = "grey90", drop = TRUE) +
    labs(title = title) +
    theme_void() +
    theme(legend.title = element_blank())
}

risk_map("wbgt_risk", risk_colors, "WBGT risk") |
  risk_map("hi_risk", hi_colors, "Heat index risk")

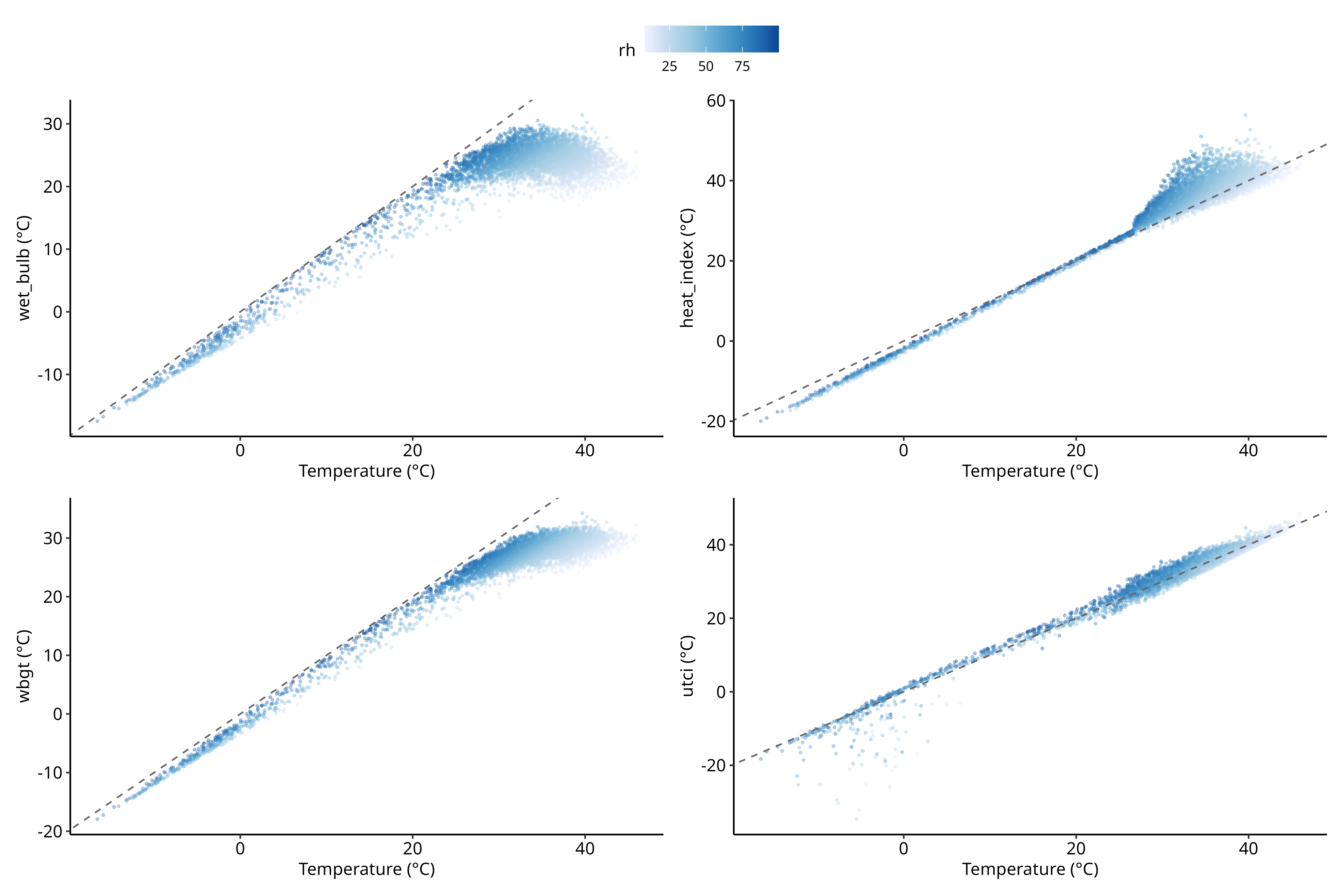

Relationship between indices

How the indices track each other, plotted against air temperature and as a correlation matrix.

sample_data <- heat_data %>% sample_n(min(5000, n()))

scatter <- function(yvar) {
  ggplot(sample_data, aes(temp_c, .data[[yvar]], color = rh)) +
    geom_point(alpha = 0.3, size = 0.5) +
    geom_abline(linetype = "dashed", color = "grey40") +
    scale_color_distiller(palette = "Blues", direction = 1) +
    labs(x = "Temperature (°C)", y = paste(yvar, "(°C)"))
}

(scatter("wet_bulb") | scatter("heat_index")) / (scatter("wbgt") | scatter("utci")) +
  plot_layout(guides = "collect")

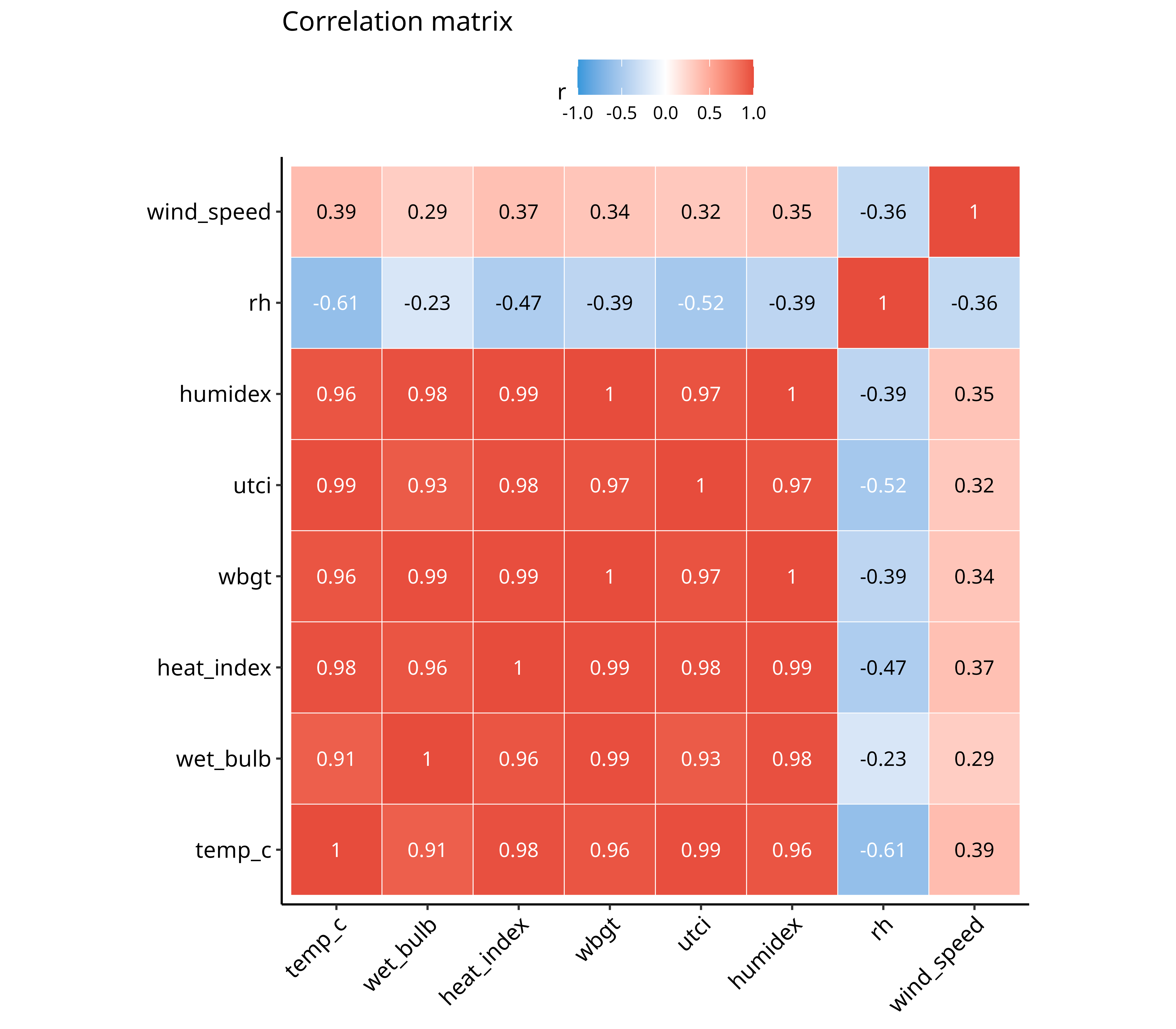

cor_matrix <- heat_data %>%
  select(temp_c, wet_bulb, heat_index, wbgt, utci, humidex, rh, wind_speed) %>%
  cor(use = "complete.obs") %>%
  round(2)

cor_long <- as.data.frame(as.table(cor_matrix))
names(cor_long) <- c("x", "y", "r")

ggplot(cor_long, aes(x, y, fill = r)) +
  geom_tile(color = "white") +
  geom_text(aes(label = r, color = abs(r) > 0.5), size = 3.5, show.legend = FALSE) +
  scale_fill_gradient2(low = "#3498DB", high = "#E74C3C", limits = c(-1, 1)) +
  scale_color_manual(values = c("black", "white")) +
  labs(title = "Correlation matrix", x = NULL, y = NULL) +
  theme(axis.text.x = element_text(angle = 45, hjust = 1), panel.grid = element_blank()) +
  coord_fixed()
